Vertical level detector
Float and magnetic contact

USE

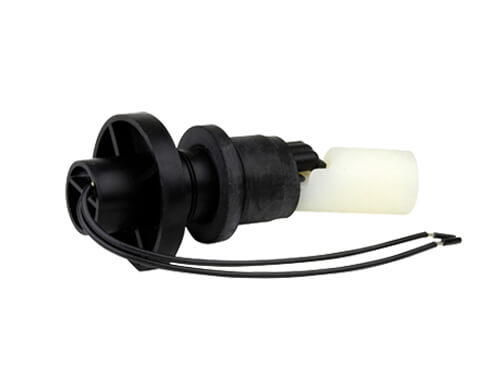

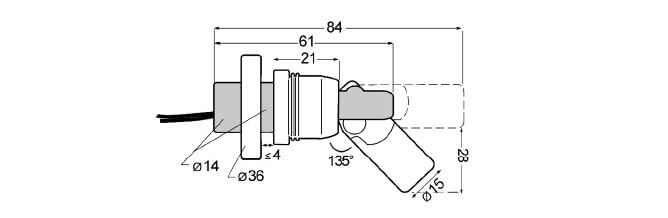

Horizontal level detector with float and compact magnetic contact.
Attached at the desired level to an orifice made on the tank wall for liquid detection.
Very useful for small containers or for low water levels.

Conditions of use :

• Protection : IP 65.
• Max. temperature : 80°C.
• Max. pressure : 10 bar.
