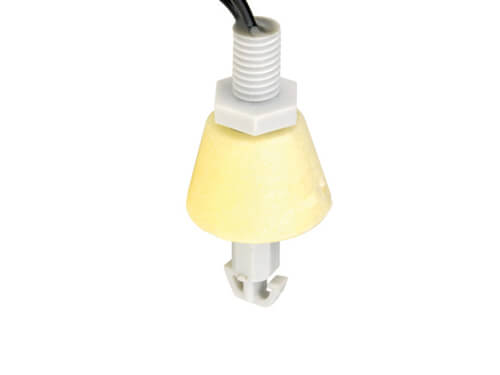

Vertical level detector
DNV type

ORDER
0,00 €
0,00 €


USE

Vertical level detector to be mounted on the inside of the tank.
The mounting position determines detection (High or Low level).

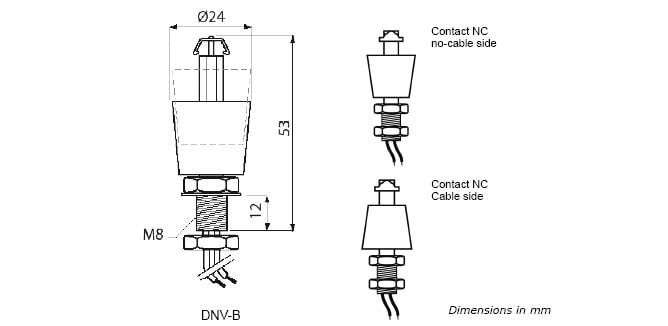

The position of the float on the housing body can reverse the direction of NC contact (to be determined when ordering).
Agricultural, industrial, medical, chemical industry uses.

Conditions of use:
  • Maximum voltage : 250 VAC - 200 VDC.
  • Maximum current : 1 A - Max. power: 30 W.
  • Maximum temperature : 80°C continuous.

Housing and float made from polypropylene.
Silicone gasket, nylon nut.

Fil PVC noir longueur 500m, 0,60 mm².
Download operating instructions for vertical level detectors
