Our Products

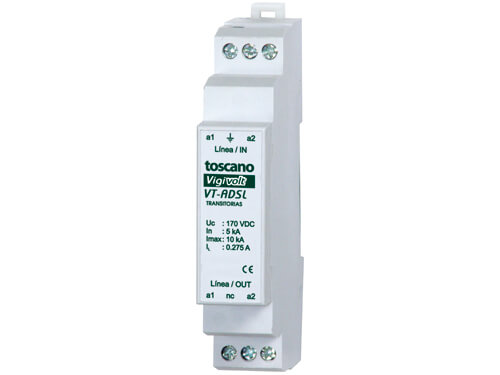

Telephone line lightning protector
V2T-ADSL

ORDER
0,00 €
0,00 €


USE

Lightning protector, one-piece, for protecting analog telephone equipment (broadband/ADSL).
See this product in our catalogue
Nominal voltage (Un) : 170 V cc.
Maximum voltage (Uc) : 185 V cc.
Rated current load (IL) : 275 mA.
Nominal current (In) : 5 kA.
Max. discharge current 8/20μs (Imax) : 10 kA.
Residual voltage at 5kA (a1/a2 / a1-a2/PE) : <250 V / 700 V.
Series resistance in ohm : 0,1.
Nominal flow: 8 Mbits/s.
Response time: <25 ns.
Dimensions (mm) : 17,5 x 90 x 63.
IEC 61643-21.
