Thermal probe
TV type

ORDER
0,00 €
0,00 €


USE

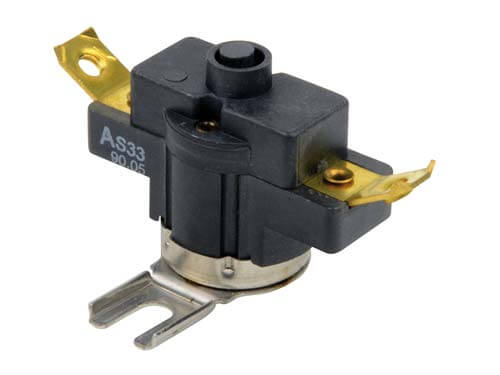

This thermostat belongs to the category of temperature controllers. Common name: bimetallic or ipsotherm.
This surface temperature sensor is recommended for controlling the surface temperature of three-phase electric motors, electromagnets, coils, pumps, single-phase motors, machines of all kinds.

Advantages :
  • Outstanding stability.
  • Small format.
  • Maximum breaking capacity.
  • Low contact resistance.
  • Surface temperature sensitive.
  • Excellent response sensitivity.


Max. voltage 250V/400V, 50/60 Hz.
See this product in our catalogue
A bimetallic thermal disc, double contact and temperature sensitive opens or closes a circuit when the reference temperature is reached.
The current flows through the bimetallic disc. The heat is transmitted on all sides by convection or radiation in gaseous or solid media.
