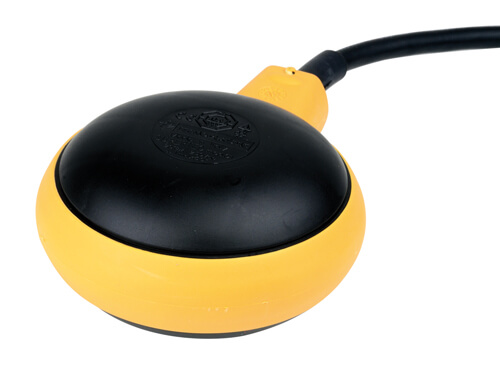

Wastewater float
SUPERTEC type

ORDER
0,00 €
0,00 €

USE

Float used for direct control of a lift pump for water with average sediment level.
Can function with only one float.

Conditions of use:
  • Max. temperature: 50°C - IP68.
  • Max. immersion: 40 m..


Respect the power characteristics of the pump and the float which must match.
See this product in our catalogue

Ball level regulator 10 A -250 V.
Weighted double chamber.
IP68 protection.
Cable: HO7RNF 3x1 mm² Ø 9mm.
1 contact NO.
Dimensions : Diameter 106 mm - Thickness 57 mm.

The SUPERTEC float is delivered with an earth connection in Green/Yellow or Green.
The two Brown and Blue wires are connected to a normally open contact in its lower position (towards the bottom OFF). This contact closes when the float is in its upper position (towards the top ON).
Can function with one float only.
Ball level regulator 20 A resistive load-250 V.
Ball level regulator 8 A motor load - 250 V.
Download the operating instructions for SUPERTEC floats
