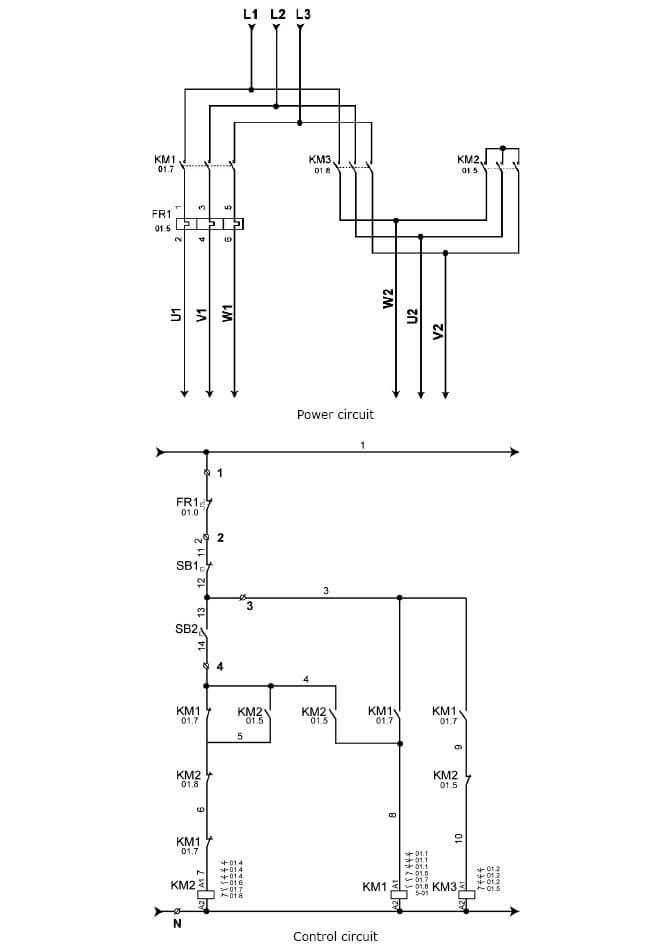

Star-delta starter
230 V coil

USE

The QJX star-delta starters, on bases, with thermal relays are used to start up and protect three phase asynchronous motors in Application class AC-3.
Bases are supplied pre-cabled with thermal relays for integrating into control boxes.

Choose your starter according to the power in KW of your motor (KW column).
Reminder: the thermal relay supplied with the starter corresponds to: In (Nominal intensity of the motor) * √ 3 (1.732) or In (Nominal intensity of the motor) * 0,58.
