USE

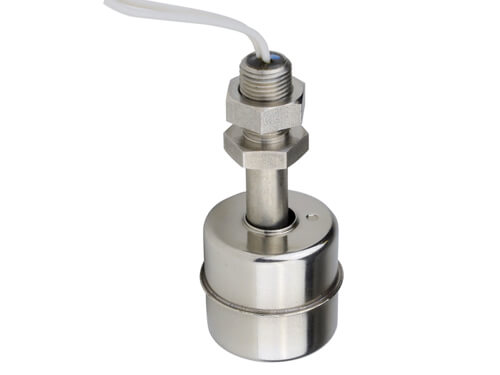

Stainless steel vertical level detector to be mounted on the inside of the tank.
The high reliability contact allows you to choose a high or low detection by simply turning the float over.
Resistant to high temperatures.
Agricultural, industrial, medical, chemical industry uses.
Conditions of use:
- Max. temperature : 120°C continuous , and peak at 150°C in water.
- Max. pressure : 20 bar.
Housing and float in stainless steel.
Wire in Vinyl.
Maximum voltage : 300 VAC - 350 VDC.
Maximum current : 0,5 A.
Max. power: 20 W.
