USE

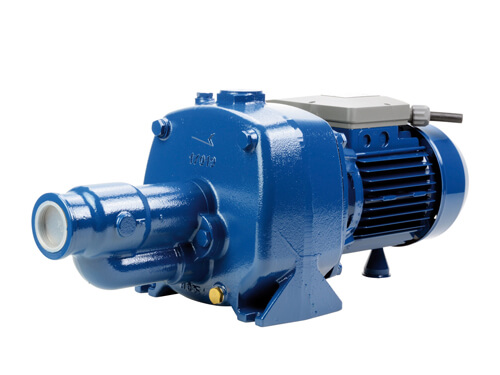

Self-priming centrifugal jet pump, designed for the lifting, supply and distribution of water, irrigation and washing.
Coupled with a reservoir, can also be installed as automatic booster system.
Domestic, agricultural uses.
Conditions of use:
- Max. temperature: 50°C.
- Max. pressure: 6 bar.
- Suction: 8/9 m.
Cast iron casing, NORYL or brass impeller.
Stainless steel, AISI 416, shaft.
Mechanical seal.
Closed IP44 motor, class F, continuous duty S1.
Built-in thermal protection with automatic reset in single phase model.
For the three-phase model, the user is responsible for supplying mandatory protection.
