Our Products

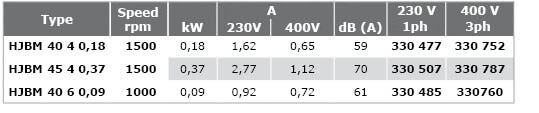

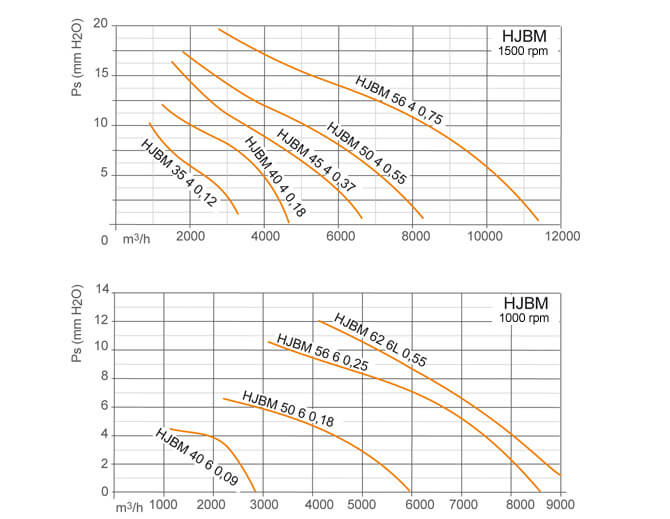

2850 < Flow m3 < 6610
40/45 type

ORDER
0,00 €
0,00 €

USE

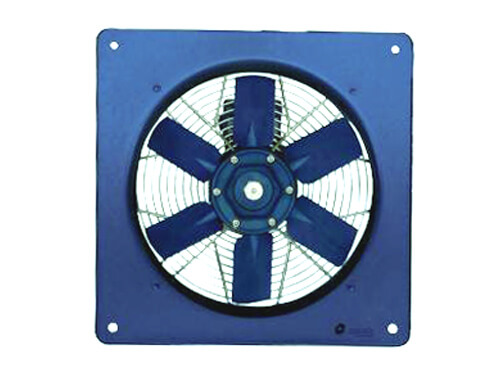

Helicoidal fan designed for wall assembly, suitable for Air renewal in buildings and industries.

Conditions of use :
  • Max. temperature: Single phase 50°C – Three phase 60°C.
  • Class F motor, IP 55 protection.
See this product in our catalogue

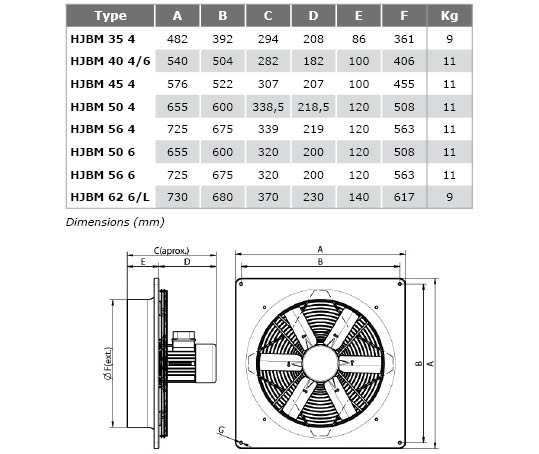

Square plate made of galvanized steel sheet.
Variable pitch angle polyamide impeller reinforced with fibreglass.
Supplied with motor support and protection guard according to the ROHS 2002/95/EC Directive (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipments).
Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230V 50Hz in single phase motors and 230/400V 50Hz in three phase motors.

Storage precautions:
Keep the fan in its original packaging, avoid storing any heavy merchandise over it.

Installation :
Before installing the fan, ensure that it has not been damaged during transport and that the grill support or the propeller have not been damaged or bent. Put the fan into place by attaching it by the grill to the casing making sure to keep a space of a 1/3 of the size of the thickness of the propeller between it and the heat exchanger.

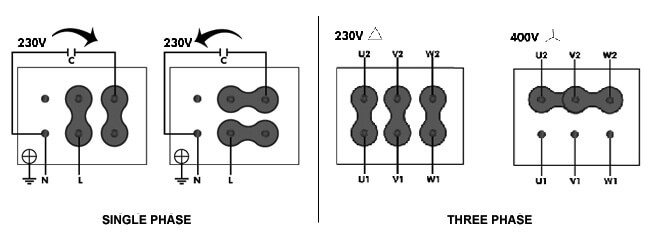

Electrical connection :
Check the power of the fanon the ratings plate and choose an appropriate electric cable segment.

General notes :
To ensure optimal use on all fans and particularly axial fans, it is important to pay special attention to the mounting and position of the fan.
Correct installation avoids any risk of noise and improves the airflow characteristics.
Download the operating instructions for axial fans
