Vertical level detector
Pneumatic with diaphragm

ORDER
0,00 €
0,00 €

USE

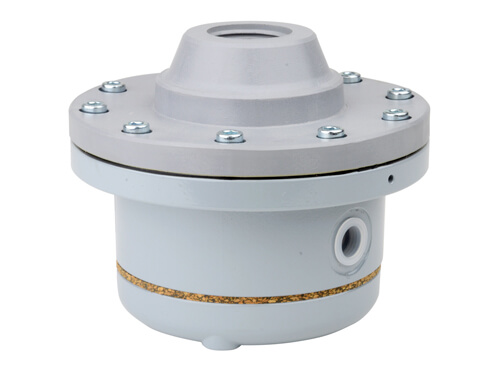

Pneumatic membrane level detector for automatic control of pumps and indication of different liquid levels in tanks and containers at atmospheric pressure.
The level controller is comprised of microswitches activated by a pressure sensitive membrane.
In addition to liquids, it can control all mixtures which are fluid enough to leave the inside of the tubing clean once they have been emptied.
It can also be used to detect pressures higher than 20mm of the water column..
Agricultural, industrial, medical, chemical industry uses

Conditions of use:
  • Maximum temperature : 60°C.
  • Protection : IP53.
See this product in our catalogue

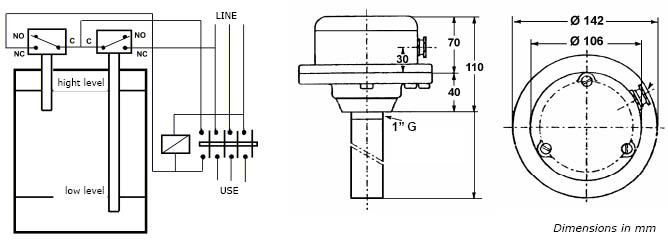

Body and cover: aluminum.
Compression chamber: polyester reinforced with glass fiber.
Membrane Neoprene, on request Viton, stainless steel, etc...

Connection tube 1 "G.
Cable entry PE M16 not included.

Switches L-27 single:
  • 1 Unipolar Inverter, 10 A, 250 Vca.
  • Activation pressure: 10 cm of the water column above the tube inlet - Sensitivity: 3 cm of the water column.

Switches L-27 double:

  • 2 Unipolar Inverters, 10 A, 250 V 2 Inverseurs unip, 10 A, 250V
  • Activation pressure: can be set from 10 to 100 cm - Adjustable sensitivity from 5 to 30 cm.
Download the operating instructions
