USE

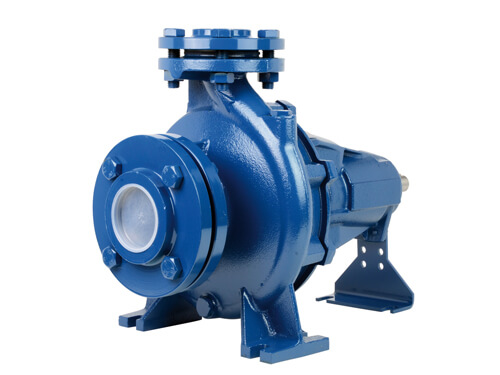

Standard centrifugal pump, single impeller bare shaft, designed for the lifting, supply, pressurization (anti-incendiary system) and distribution of water, irrigation and washing.
Domestic, agricultural and industrial uses, climate control.
Standard pump delivered with counter-flanges.
Conditions of use:
- Liquid temperature: 0°C to 90°C.
- Max. working pressure: 10 bar.
MA Standard DIN 24255 UNI 7467 series.
AISI 304 stainless steel shaft.
Pump casing, impeller in cast iron (32-200 bronze).
Sealing by mechanical seal.
Delivered with counter-flanges.
DIN 24255 .<br>
NI 7467.<br>
EN 733 (NF 44111).
