USE
Three-phase electric motor, used for all types of machinery: machine-tools, transfer machinery, pump motors, fan motors, travelling cranes, and other moving and lifting machinery.
Motor and flange delivered separately and ready to assemble.
The choice of non-standard three-phase electric motor is based on the following criteria:
- Rotation speed. (3 different tables)
- The shaft diameter (11, 14,19 or 24 mm)

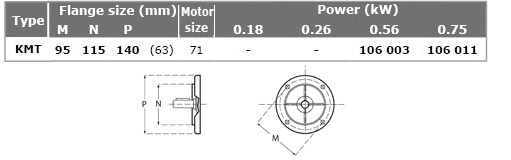

- The shape of the flange, B14 or B5.
- The required dimension for this flange shape.
- Motor power.
Class F - IP 55 - Cage rotor.
230/400 V - 50 Hz.
Aluminium alloy frame and outer flange with non-standard flange and shaft (motor and flange delivered separately and ready to assemble).
The choice of non-standard three-phase electric motor is based on the following criteria: - Rotation speed. (3 different tables).
- The shaft diameter (11, 14,19 or 24 mm).
- The shape of the flange, B14 or B5.
- The required dimension for this flange shape.
- Motor power.
