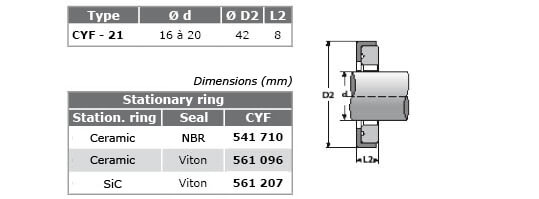

Mating ring - CYF type
Shaft Ø 21 mm

USE

Mating ring for mechanical seal, 21 mm diameter shaft.
Mounts with counter-ring type CYT.
Spring and metal parts in stainless steel AISI 304.

Conditions of use :

• Max. pressure : 6 bar.
• Direction of rotation: indifferent.
• Speed : 10 m/s.
• Temperature : NBR seal (nitrile) : -30 °C to + 100 °C.
• VITON seal, corrosive liquids : -140°C.
