Our Products

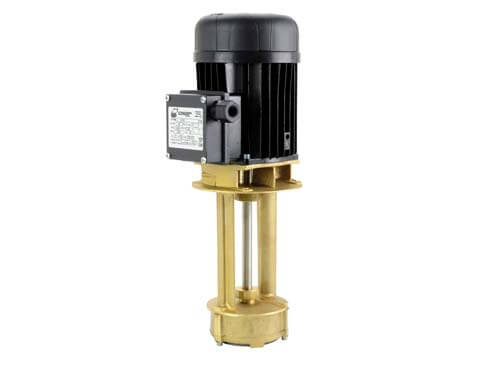

Machine tool pump with dip tube
Liquid ring - PS type

ORDER
0,00 €
0,00 €


USE

High pressure machine tool pump for pumping cutting oil from machines, cooling fluid circulation…
General mechanics, industry, turning machines, HVAC, industrial process…

PS 600 Special features:
  • High pressure machine pump whose advantage is to allow dual application of submersible centrifugal pumps and horizontal displacement pumps.
  • Particularly suited to circumstances in which there is a need for reduced flow with high pressure for nozzles with a reduced diameter.
Example: general applications of jet systems where the refrigerant also allows emptying and detaching chips or burrs

Cast iron pump casing except PS 100 - brass casing.
Columns in cast iron.
Brass impeller.
Stainless steel AISI 416 shaft except PS 600 in AISI 420.
Closed self-ventilated motor.
Stainless steel fasteners.

Download the operating instructions for machine tool pumps
