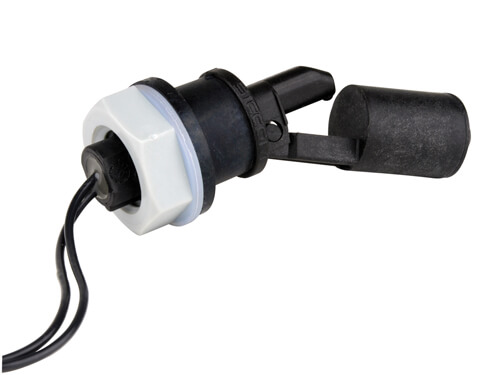

Horizontal level detector
PP - PAS - PAN - M16 types

ORDER
0,00 €
0,00 €


USE

Level detector detecting « low » and « high » levels; aggressive liquids, food or fuel (according to choice of material).
Mounting outside the tank or reservoir is possible for models: PP - PAS - PAN.
Waterproof fixing seal provided
Agricultural, industrial, medical, chemical industry uses.

Conditions of use:
  • Maximum voltage: 250 VAC - 200 VDC.
  • Maximum current: 1 A - Max. power: 30 W.
  • Coding towards top: Normally Closed.
  • Coding towards bottom: Normally Open.
  • Maximum temperature.
  • Black wire PVC 0.60 mm ², length 500 m.
Maximum voltage 250 VAC - 200 VDC
Maximum current : 1 A– Max. power : 30 W
Coding towards top: Normally Closed ; Coding towards bottom: Normally Open.
Maximum temperature : 80° C continuous
Black wire PVC 0.60 mm ², length 500 m
Download operating instructions for M16 horizontal level detector
Download operating instructions for PP horizontal level detector
