Frequency converter

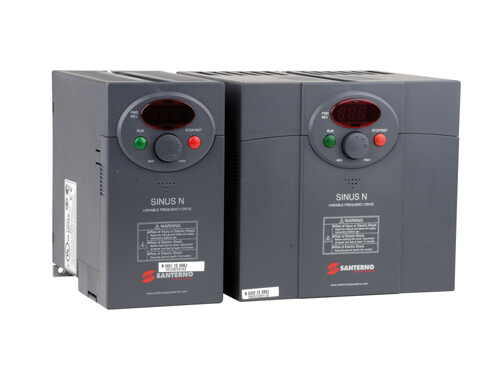

SINUS N (IN : mono /OUT : tri)

ORDER
0,00 €
0,00 €


USE

Variable speed system by frequency converter, for asynchronous motor, for all types of machine on which speed variation is required.
  • Input: single phase 200 - 230 V.
  • Output: three phase 200 ~ 240 V.

Power: 0,4 kW to 3 kW - IP 20 – with built-in interference filter. 50/60 Hz.
Power from 0.4 KW to 3 KW.
Double control technology: flux vector control and V/F.
Built-in potentiometer.
On/Off button.
Protection : IP20.
Electric overload 150% 1 mn or 200% 0,5 s.
Max. output frequency 400 Hz.
Automatic setting function for optimum motor control.
Algorithm for automatic restart and against unexpected activation.
Switching frequency can be set from 1 to 15 Khz.
Automatic and manual torque boost.
Step by step function (JOG).
Rapid search.
PID function.
S ramp.
8 speed set-points.
3 frequency hops.
5 progammable digital inputs NPN PNP.
2 analogical inputs 0-10 Vdc and 4-20mA.
1 multifunction open-collector output.
1 multifunction relay output.
1 multifunction analogical output 0-10Vdc.
Built-in input filter EN 61800-3 edition 2 first atmosphere, C1, EN55011 gr1.
Class B for industrial and domestic use, EN50081-1, -2, EN50082-1, -2, EN61800-3-A11.
Built-in input filter EN 61800-3 edition 2 first atmosphere, C1, EN55011 gr1
Class B for industrial and domestic use, EN50081-1, -2, EN50082-1, -2, EN61800-3-A11
