Centrifugal fan BOX - 1000 rpm
Single phase 230 V

ORDER
0,00 €
0,00 €


USE

Centrifugal fan, double inlet, action impeller mounted in a sound-proof housing.

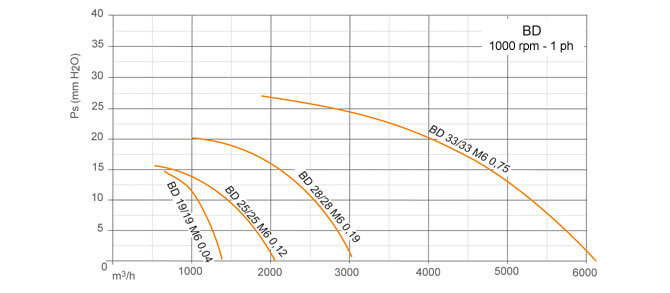

Flow range of 1,170 m3 / h to 10,000 m3 / h.
Supplied with a motor with direct coupling on anti-vibration mounts.
Industrial, agricultural, tertiary sector uses.

Conditions of use:
  • Maximum air temperature: 55 ° C.
  • Mounted on interior or exterior.

BD fan mounted in soundproof housing soundproofed by insulated with Flexiroll Pol Na 30 gray insulation panels s.
M1 fire resistance.
Cable gland for cable exit.
Fan mounted on anti-vibration support.
Closed motor, aluminium body IP65.
Insulation class F, IP54 protection.
