Delayed relay : power OFF delayed release

USE

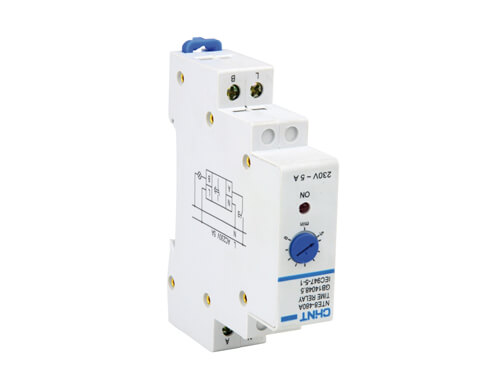

The NTE8 time delay relay is made up of an insulated case, a setting button, a light signal showing operation starting. To set the time delay, the blue button is used.
The control circuit wires are connected to terminals A1 and A2 . The power circuit is connected to terminals B1 and B2.
When the K command button is closed, the time delay is in operation and the B1-B2 contact will close after the time shown by the setting button has elapsed (the lamp lights after up after a certain time).
When the K command button is open, the contact opens immediately (the lamp goes out).
